Free Fall Hook Winch Reducer

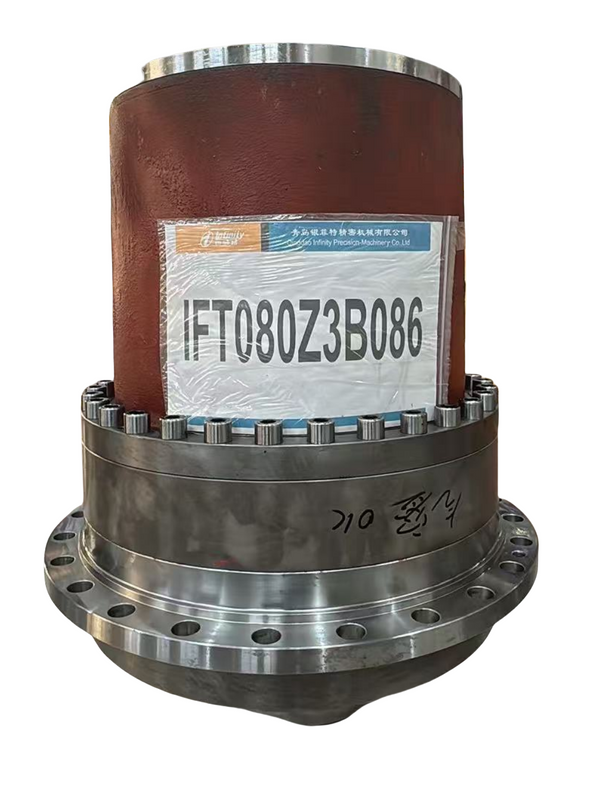

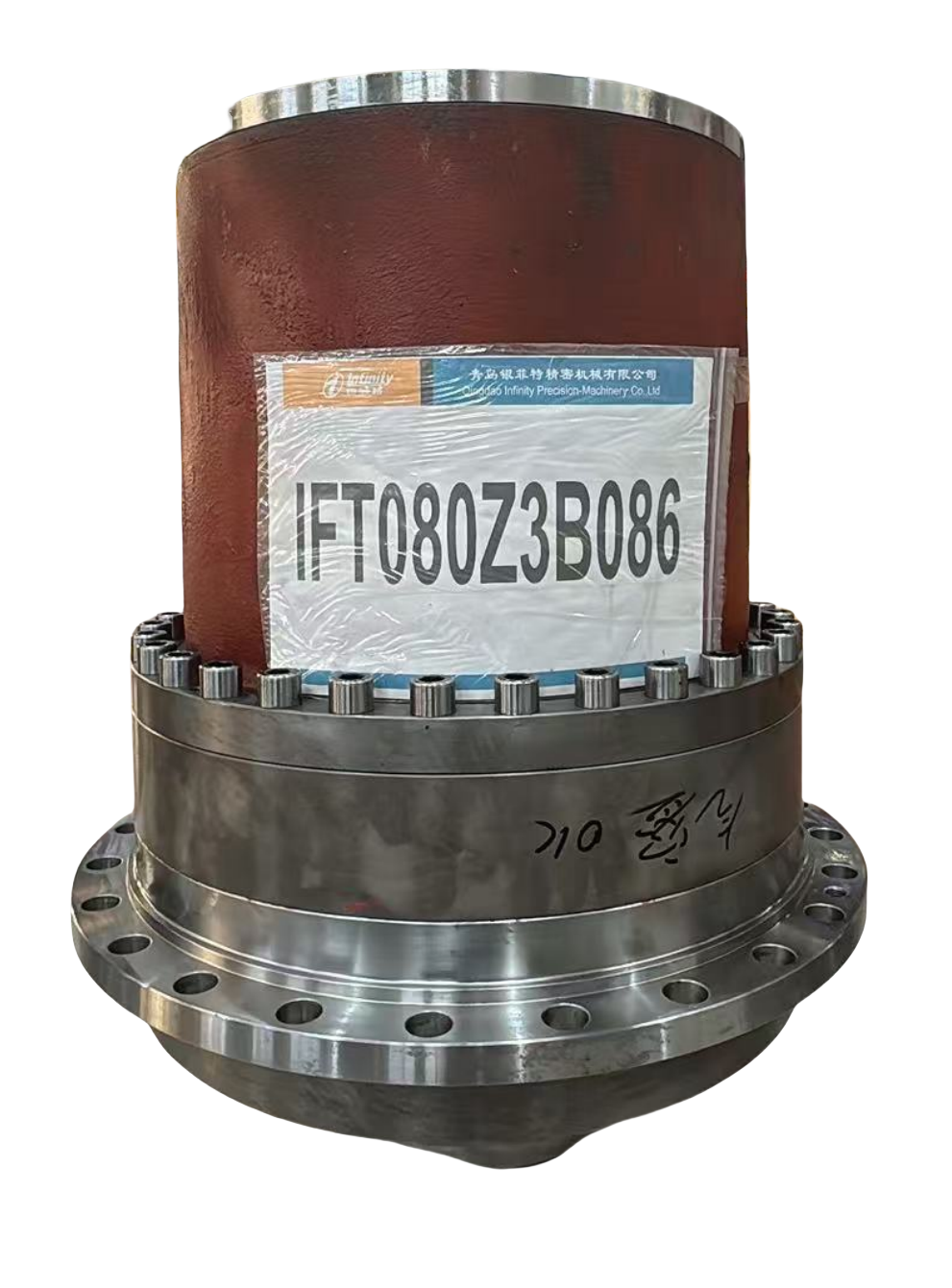

 Infinity Independently Developed Free Fall Hook Winch Reducer Finished

This free fall hook winch reducer independently developed by Infinity and with complete intellectual property rights can be widely used in construction machinery, lifting machinery, piling machinery, mining machinery, petroleum machinery, Marine machinery and other fields. This kind of reduction mechanism manufacturing technology has been monopolized by foreign reducer brands, and our successful development has filled another technical gap in the field of domestic reduction mechanism manufacturing, which is one of the milestones in the history of domestic reduction mechanism。

Free drop hook lifting reducer by changing the reducer is simply connected with the drum to transfer torque form, so that the reducer can transfer large torque clutch and reel connection to achieve the lifting function, lifting the reducer to transfer large torque to the clutch, the clutch is transferred to the reel, the clutch and reel are instantly separated when the clutch is lowered, and the reel is idling to achieve fast hook. Our independent research and development of free fall hook reducer has the following characteristics:

1.Modular design, three-stage transmission, compact structure, can be directly connected with the drum.

2.In poor condition, low service life of research and development, improves the classification of the speed reducer, use than ordinary reducer strength, toughness and hardenability better raw materials. The core parts of the reducer gear and gear ring are nitriding grinding process, low noise, long service life;

3.Reducer built-in multi-plate parking brake, spring locking hydraulic open, can guarantee the load at any position to stop.

4. The bearing system is strong and can absorb the external force of the connecting flange.

5. Reducer is wet multi-disc clutch is fully closed structure, cut off from the outside world from pollution, can be competent for polluting the environment. The heat dissipation mode of forced circulation can quickly take away the heat generated by friction and ensure the service life of the friction sheet. The friction plate does not need to be adjusted during clutch use.
